Liquid Kneeboard Rack - INDY - ANODIZED - R-IKA2.5O

Liquid Kneeboard Rack - INDY - ANODIZED - R-IKA2.5O

$299$179
Kneeboard racks, kneeboard is placed in the bottom slot, not top like others. This is for easy access and storage, best kneeboard racks on the market.
Quantity:
Description

Indy created and released the first Kneeboard racks, combo wake/kneeboard on the aftermarket.

ANODIZED superior finish.

The main difference is the location of the kneeboard slot. It is on the bottom of the rack, with the wakeboard slot is on top.  This allows you to have easy access to you kneeboard without dodging and fighting with your wakeboard and boots.

Having the kneeboard on the bottom, makes slotting the bulky kneeboard into the rack so much easier that trying to put into a high angled position above a bulky wakeboard. Plus a bottom position the bungee cord us up against the base of your board, no compressing and damaging your padded area of your kneeboard.

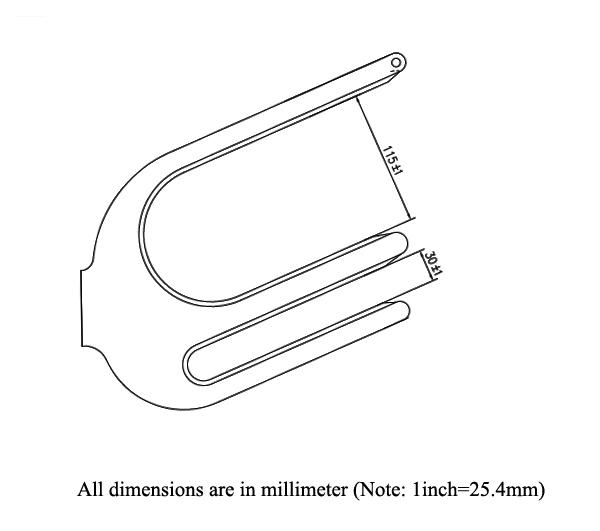

This middle finger tip being thick, has the slots angled apart so the boards, angle away from each other. Therefore, no hitting each other. That has to be work it in the long run, no damage.

If you look close at the bottom of the slot you will notice it is a triangular wedge shape for the top position wakeboard, this is on purpose to give your board that extra bit of locking into place to reduce movement whilst in the rack and held in place by the bungee cord strap. A closer look at the bottom slot you will notice a couple of curves, this is created to take a normal thick surfboard as well as locking in the molded edge of the thick kneeboards and room for the foam padding. Being on the bottom also protects the foam on top of your kneeboard from the bungee strap. Other brands the bungee comes down tight onto your padding and over time damages it.

The finger attach from the side for a reason, if you look close there are 3 separate holes, you can adjust the fingers angle by changing which hole you place the bolt to attach. So once you have attached the rack to your tower legs (as we know all rear legs will be different on different boats) you can now personally adjust to the angle you want your kneeboard and wakeboard to sit.

We have then came up with a solution for those who do not want to spend the extra cash on a swing rack adaptor for simple storage whilst driving or parking in the dock to get your racks inside the boats outline.

In the design is an extra hole you can see up the top finger. This allows you to undo and bolt and swing the finger down and inside the boats outline and re attach the bolt. Keeping the rack on the tower for travel and storage in a dock, without the risk of knocking of the fingers on a vehicle, building or trees.

Clamps are 2.5inch with a 2.25inch rubber insert.

Materials

We use quality raw material a 6061 solid Aircraft Aluminium which is cnc machined to our specs in thickness and design for pure performance.  The inside surface of the finger has a special machined 4mm channel to take our UV treated hard rubber bumper which is a mushroom shape to look after your boards. All the hardware is stainless steel for the marine environment. We include a marine grade bungee cord which is already installed for your use.

The difference is the finer details
